RECESSED 48 x LED SPOT LIGHT

RECESSED 48 x LED SPOT LIGHT
INVISIBLE LED DOTS 3.6W 300LM


GENERAL SPECIFICATIONS

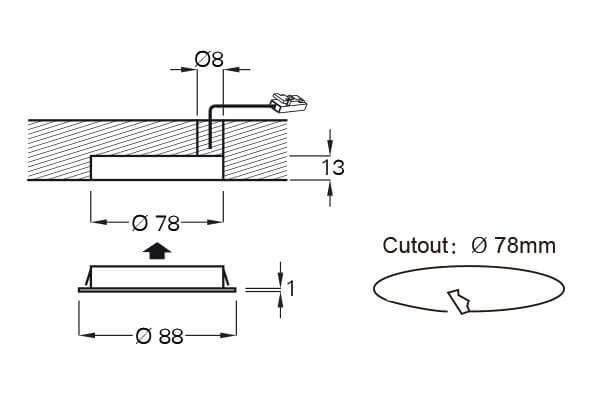

  • For recess mounting-screw fixing
  • Light source: 48pcs. SMD 2835 LED
  • High lumen output, homogenous light
  • No visible LED dots
  • Material: anodized aluminum ring with frosted cover
  • Finish: satin nickel / polished chrome / aluminum brushed
  • LED driver: constant voltage type
  • Average lifespan: 25000hrs

ELECTRICAL AND PHOTOMETRIC CHARACTERISTICS
  • Input voltage: DC 12/24V
  • Lumen: 280Lm
  • CRI: 80
  • Angle: 120°
  • Power: 3.8W
  • Color temperature: 3000K/4000K/6500K
  • Energy efficiency class: A+

MODELS
MODEL NO. DESCRIPTION WATT LUMEN CONNECTION CABLE
CL13R 1 x LED spot light 3.8W 2800 2m lead with mini connector
CL13Rx3 3 x LED spot light kit 3 x 3.8W 3 x 280 2m lead with mini connector
