W2C2-12/24
HOME / Product
GENERAL SPECIFICATION
2.4G,2wire wireless technology, worldwide acceptable
Additional operation keys on the receiver.In case that remote controller is not working or lost
Warm white to cool white changing
With memory function
With color changing wheel and energy-saving mode
Wall mounting holder included
ELECTRICAL AND PHOTOMETRIC CHARACTERISTICS

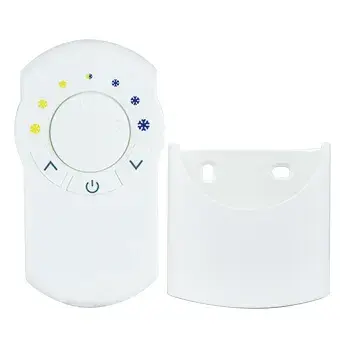

Transmitter (remote controller)
Frequency | 2.4G |
Remote controller working distance | 20 meters |
Working voltage range | 2.2-3.3 V (CR2032) |
Receiver
Input | DC 12V/24V |
Output current | 5A |
Output power | 30W/60W |
Dimming mode | PWM |
Coloer temeperatur | 3000-6000K |
Receiver frequency | RF 2.4 GHz |
Receiving distance | 20 meters |

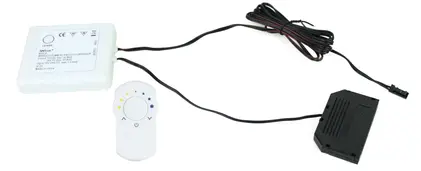

MODELS
MODEL NO. | DESCRIPTION | INPUT CABLE | OUTPUT CABLE |
W2C2-12 | 12V DC 5A 30W | 1m 2×0.75mm2 cable with LED mini plug LV-MP | 0.15m 20AWG cable with 3-PIN 6 way connector HV-3D06 |
W2C2-24 | 24V DC 5A 60W | 1m 2×0.75mm2 cable with LED mini plug LV-MP | 0.15m 20AWG cable with 3-PIN 6 way connector HV-3D06 |
